Products Description
Features:
* Good directivity; No matter where you are, you can enjoy complete and true sound, and have the feeling of "no distance and full space".
* Long spread distance; Because the speaker uses approximate flat diaphragm, the waveform of sound wave propagation between the spherical wave and plane wave, sound attenuation is small.
* Low distortion; The amplitude of the ultra-thin speaker is very small, so the nonlinear distortion caused by the amplitude is also small, small body, and large energy.
* Thin shape, occupies little space; Ultra-thin speaker can be placed in any position, unlike traditional speaker, due to the
different placement, in addition to affecting the outlook, the listening effect is also very different.
* Clear sound quality, good transient response; It has the artistic conception of "near the ear is weak, far away is clear, and
the sound does not know where it comes from".
* The shape is flexible and versatile; it can be designed into any shape according to individual needs, aesthetics and mechanical requirements, and the surface of the vibration plate can also be a creative world for all kinds of art works.
* Small unit size; Break through the thickness limit of traditional speaker unit in the industry.
Specification:
- Sensitivity: 87dB
- Rated power: 50W
- Frequency response: 145Hz ~ 20kHz
- Directivity: 120°H x 120°V
- Rated impedance: 4Ω
- Driver: 2x4Ω, Super speaker unit + 1x8Ω, Dome tweeter
- Cabinet material: aluminum (panel) + MDF wood frame + iron (back panel)
- Product dimensions: H600mm*W115mm*D26mm
- Packing dimensions: H655mm*W190mm*D100mm
- Net weight: 2.4KG
- Gross weight: 3.0KG
- Installation: Factory standard with U-type snap-on wall mounting

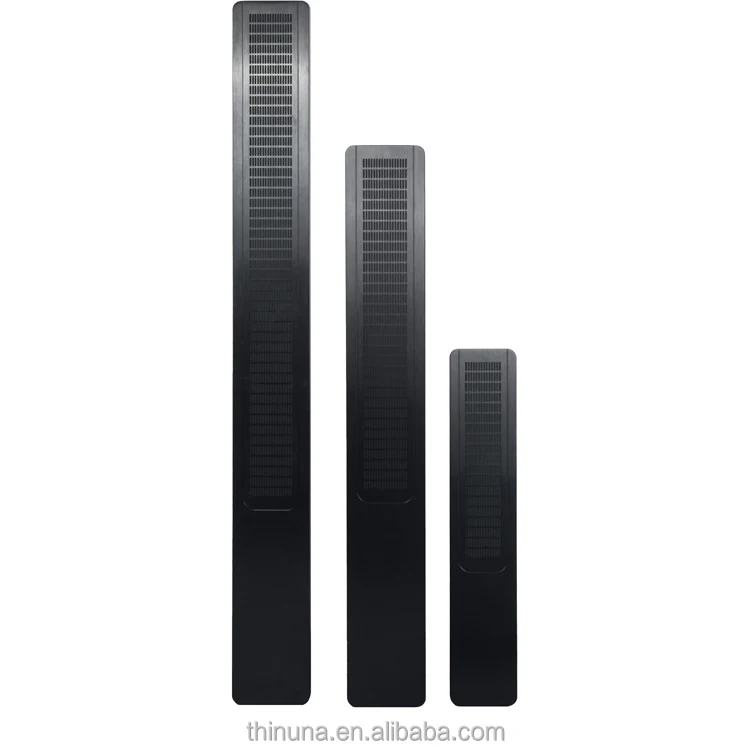

Product name | Extremely thin full-range speaker Ultrathin S1 | Extremely thin full-range speaker Ultrathin S2 | Extremely thin full-range speaker Ultrathin S3 |
Model No. | Ultrathin S1 | Ultrathin S2 | Ultrathin S3 |
Sensitivity | 91dB | 91dB | 87dB |
Rated power | 150W | 100W | 50W |
Nominal impedance | 6Ω | 8Ω | 4Ω |
Frequency response | 125Hz ~ 20kHz | 125Hz ~ 20kHz | 145Hz ~ 20kHz |
Nominal directivity | 120°H x 120°V | 120°H x 120°V | 120°H x 120°V |
Cabinet material | aluminum panel + MDF wooden frame +iron back panel | ||
Driver | 6x4Ω, Super Speaker +2x8Ω, Dome Tweeter | 4x4Ω, Super Speaker +2x8Ω, Tweeter | 2x4Ω, Super Speaker +1x8Ω, Dome Tweeter |
Product size | H1190mm*W135mm*D26mm | H950mm*W135mm*D26mm | H600mm*W115mm*D26mm |
Packing size | H1250mm*W210mm*D100mm | H1005mm*W210mm*D100mm | H655mm*W190mm*D100mm |
Net weight | 5.6KG | 4.2KG | 2.4KG |
Gross weight | 7KG | 5.1KG | 3KG |
Installation | U-shaped snap-on wall mount | ||
Applications | all kinds of high-grade conference occasions, hotels, business reception centers | ||
Application Cases
Suitable occasions: Airports, Bus stations, Hotels, Office buildings, Gyms, Villas, Homes, Schools, Bar spas,KTV ,Saunas, Parks.......
Recommend Products
The main products：
Speaker：Ceiling Speaker, Professional Speaker,Blue tooth Speaker,Wall Mount Speaker，Column Speaker, Horn Speaker,Conference Speaker，Active Speaker,Garden Speaker，Lawn Speaker , Rock Stone Speaker, Landscape Speaker ,Subwoofer Speaker，Sound System etc.Amplifier：Pa Amplifier，Blue tooth Amplifier，4 Channels Amplifier，FM Amplifier，Class D amplifier，Audio amplifier，Professional Amplifier etc.Public Address System：IP network system，IP Network Host，IP Network Soft，IP Amplifier，IP Speaker，IP Microphone.
About us
Production Flow
Our customer feedback
Packing & Delivery
FAQ
Q: Are you Manufacturer or Trading company?
A: We have more than 20 years experience in researching and manufacturing
Q: Do you have any qualification certificate?
A:Yes, we have the CCC.CE and ROHS certificates
Q: Is sample available?
A: Yes, sample order is welcome, sample and delivery cost to be paid by buyer.Average delivery for sample is around 7-10days.
Q: Can I use my own Logo?
A:Yes, you can use your own Logo. We are rich experienced in OED/ODM orders.
Q: Could you produce the products according to our request?
A: Of course, we have experienced engineers to design the expected items as you want, we have much experience at ODM.
Q:What is your payment terms?
A: T/T payment or Visa Card via alibaba.com 30% deposit payment before production, and 70% balance payment before shipment.
Q: What would the delivery time be?
A: Regularly 15-30 days since deposit received depends on different quantities.
Q: Shipping documents to be provided.
A: Invoice, packing list, Bill of lading for all shipments. CO, CQ, FORM E available when requested.
Q: Warranty.
A: 12 months after shipment
